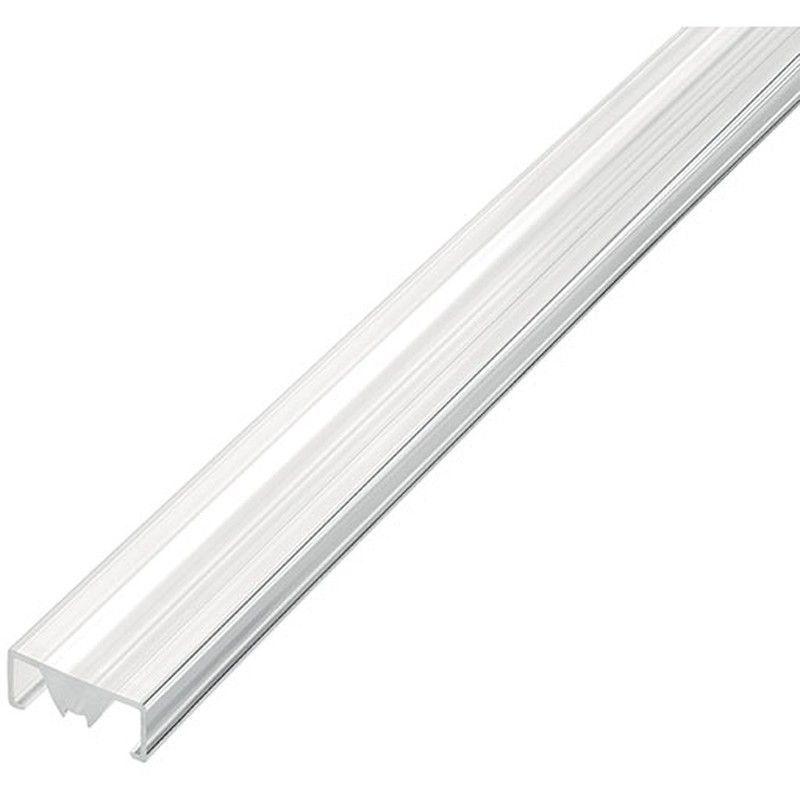

ACL LINEAR LENS 24x1500mm INTENSE

Linear lens for LLE 20 / 24 ¦ Available with different beam characteristics ¦ Protection against direct touch for non-SELV applications (recommendation: use all fixing points) ¦ Fast snap on mounting on to LLE 20: with M4 screws and plastic washers, to LLE 24: with clips or plastic washers ¦ Recommendation: Fastening with screws and plastic washers, see 2.3 Heat sink specifications in data sheet ¦ Material: PMMA ¦ Available lengths: 1,200, 1,500 and 1,800 mm, Tolerance: + 10 mm (ends raw) ¦ Max. permissible temperature 80 °C ¦ Photometric data available on website ¦ ENDCAP for LINEAR LENS 24mm INTENSE, ASY and DASY ¦ Mounting by clipping in and screwing from below using screw EJOT Delta PT WN 5451 20x4, tightening torque 0.7 Nm ¦ Made of Polyamide UL94 V0
