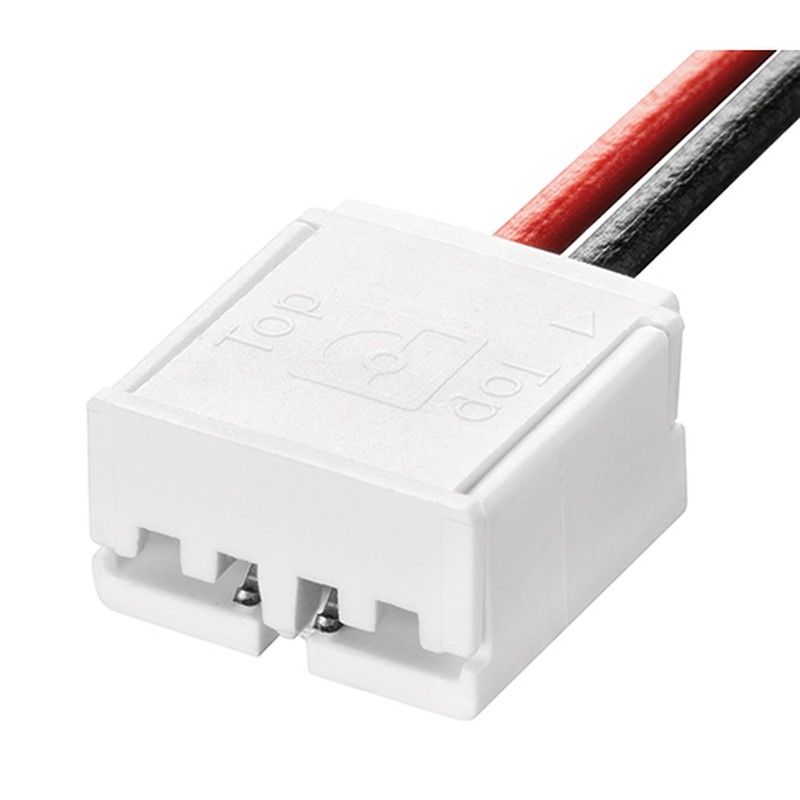

ACL plug connector Wire to PCB 9x4.2mm

For connection of LLE FLEX 8 mm modules (SNC2, ADV3 and EXC3) ¦ Easy assembly: remove adhesive 3M tape on the backside of the LLE FLEX in the connection area, insert the LLE FLEX into the connector and lock it by pressing down the top of the connector ¦ The insertion length of the LLE FLEX must be at least 4 mm (cut the LLE FLEX at the dotted lines) ¦ Glow wire test according to IEC 60695-2-11: 650 °C ¦ Irated = 5 A ¦ Urated = 29.9 V ¦ Wire cross section AWG 20
