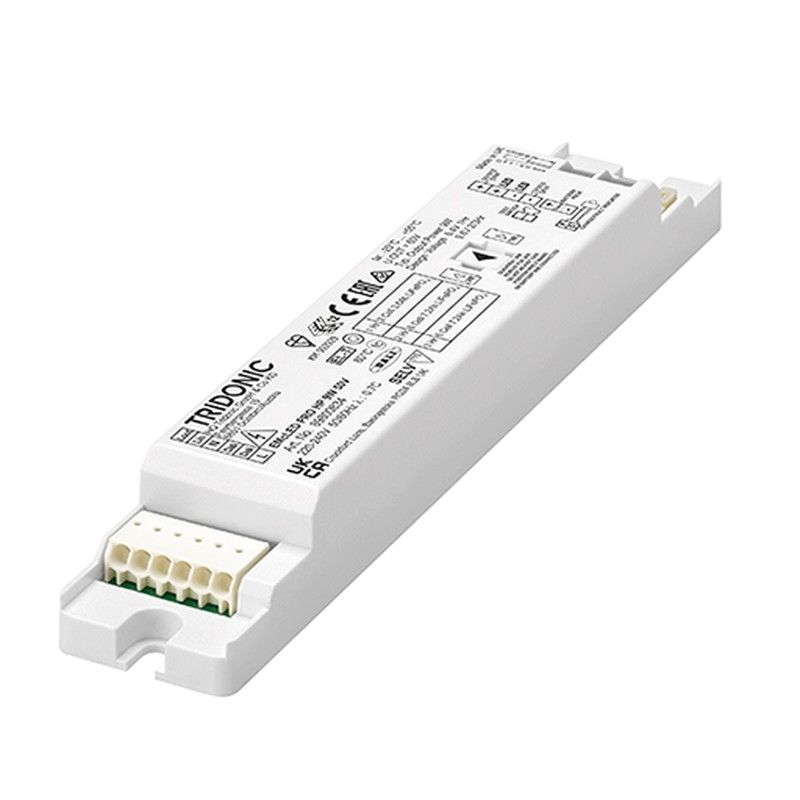

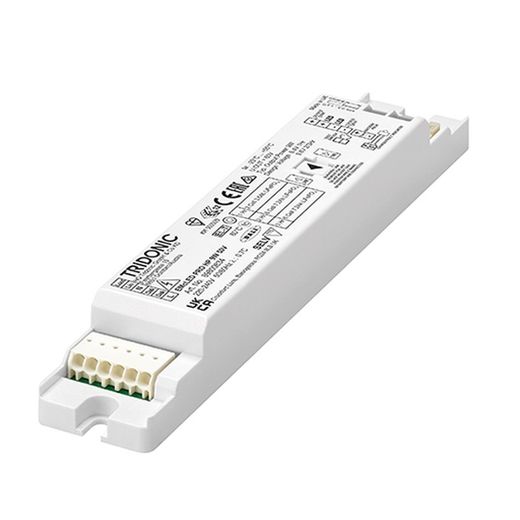

EmcLED Pro Hp 9w 50v
Marca: TRIDONIC
Referencia: 89800834
94,11 €
Producto agotado, no disponible en este momento.
Próxima entrada de stock en camino, prevista
Descripción
Emergency lighting units
Detalles
Más información
Emergency lighting LED driver with DALI interface and automatic test function ¦ For self-contained emergency lighting ¦ For LED modules with a forward voltage of 15 – 54 V ¦ SELV for output voltage < 60 V DC ¦ Low profile casing (21 x 30 mm cross-section) ¦ For luminaire installation ¦ Nominal lifetime up to 100,000 h ¦ 5 years guarantee (conditions at www.tridonic.com) ¦ Non maintained operation ¦ DALI interface for controlled testing and monitoring ¦ 1, 2 or 3 h rated duration ¦ Operating time selectable with plug (duration link) ¦ Compatible with most constant current LED drivers (see data sheet, LED driver compatibility) ¦ 3-pole technology: 2-pole LED module changeover and delayed power switching for the LED driver ¦ Automatic shutdown of output if LED load is out of range ¦ Constant power output ¦ Addressing function, patented (“EZ easy addressing”) ¦ Two-colour status display LED ¦ Electronic charge system ¦ Deep discharge protection ¦ Short-circuit-proof battery connection ¦ Polarity reversal protection for battery provided by 3-pole connector ¦ {nobullet} Tests: ¦ Status of the battery ¦ Status of the LED ¦ Function test ¦ Duration test ¦ LiFePO4 batteries with Tridonic LiFeGuard ¦ High-temperature cells ¦ 26650 cells ¦ 4 year design life ¦ 3 years guarantee (conditions at www.tridonic.com) ¦ For battery compatibility refer to data sheet, battery selection
