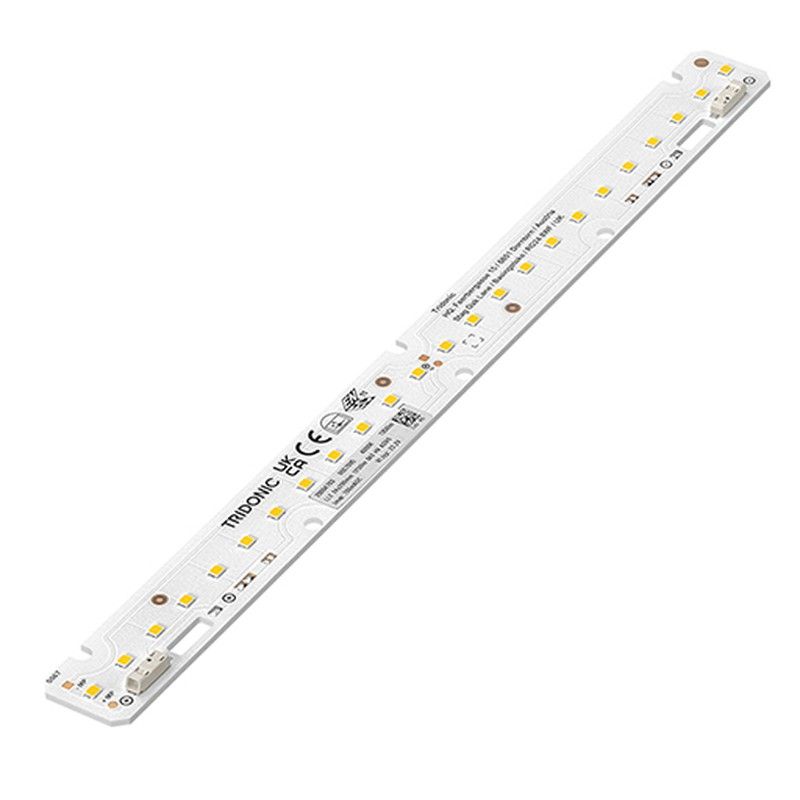

LLE 24x280mm 1250lm 865 HV ADV6

Ideal for linear and panel lights ¦ 2 terminals for serial wiring ¦ Perfectly uniform light, even if several LED modules are used together in a line ¦ Push terminals for quick and simple wiring of LED module to LED module ¦ Broad portfolio from extruded lenses and covers available ¦ HE ... High Efficiency, NM ... Nominal Mode, HO ... High Output ¦ Min. order quantity LLE 24x70mm QTY4: 36 pcs. The LLE 24x70mm QTY4 module contains 4 single 24x70mm modules which have to be separated ¦ Long lifetime up to 72,000 hours ¦ 5 years guarantee (conditions at www.tridonic.com) ¦ Colour temperatures 2,700, 3,000, 4,000, 5,000 and 6,500 K ¦ Useful luminous flux 2,482 lm at Irated and tp = 25 °C ¦ Efficacy of the LED module 205 lm/W at Irated and tp = 25 °C ¦ High colour rendering index CRI > 80 ¦ High colour consistency (MacAdam 3) ¦ Small luminous flux tolerances ¦ Module dimension 24 x 70 mm, 24 x 140 mm, 24 x 280 mm and 24 x 560 mm (ZHAGA compliant) ¦ Simple installation via clips or screws ¦ Combine Tridonic's LED modules and dimmable drivers to achieve an outstanding system efficacy (configuration possible via https://setbuilder.tridonic.com/)
